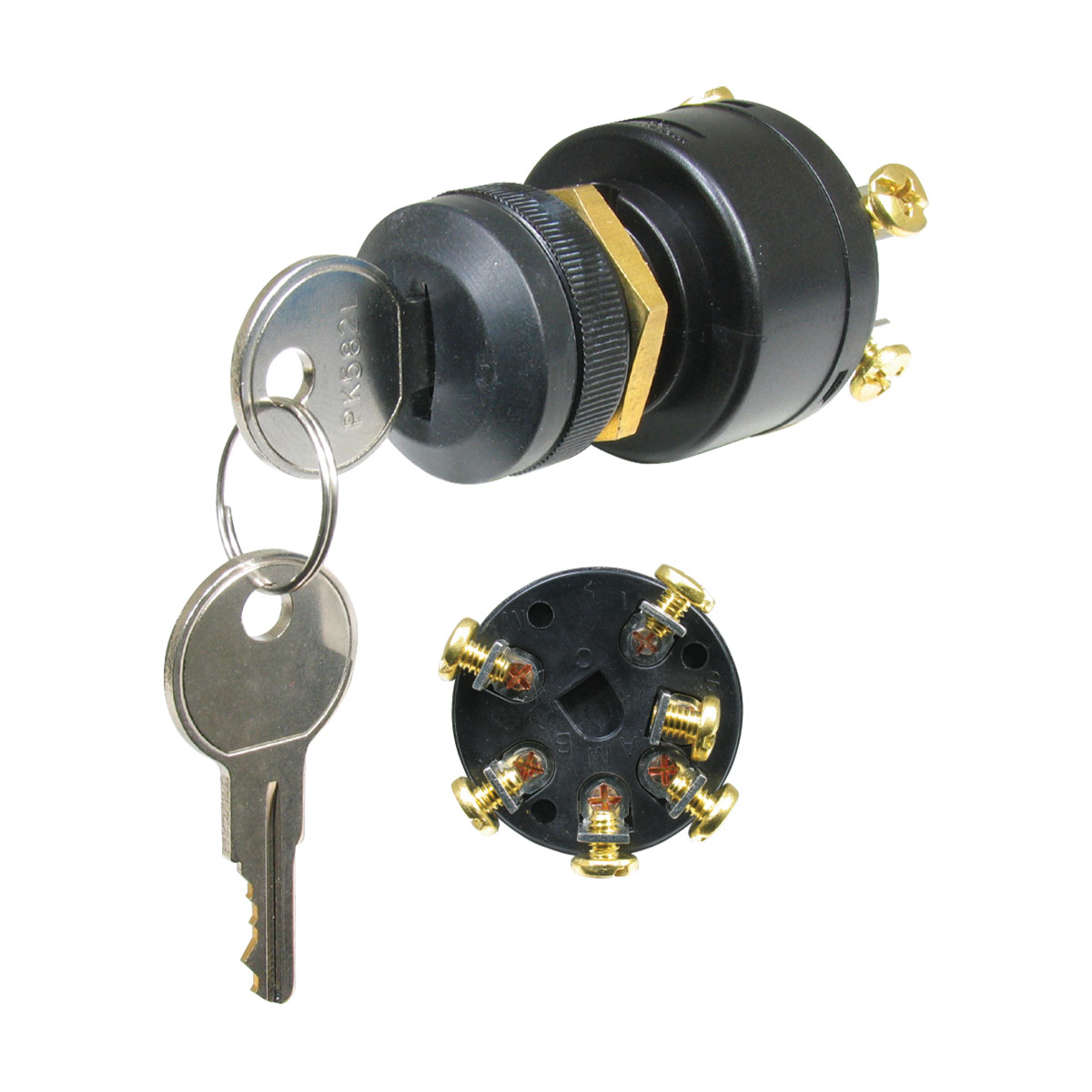

Sierra Marine Ignition Switch – Short Shaft 6 Terminals

Marine grade glass-filled polyester constructed ignition switch with an inner seal between cylinder lock and contact plate providing ultimate protection against corrosion. Non-conductive housing eliminates potential shorts.

Specifications
• 4 position magneto accessory off-run-start
• 15 amps at 12VDC ignition
• 30 amps at 12VDC solenoid
• 15 amps at 12VDC accessory
• 7 amps at 12 VDC choke
• 16mm panel thickness (max)
• Push to choke
