This powerful light bar utilises our exclusive dual-chip hybrid technology to produce an enormous 1 lux @ 900m forward of the vehicle whilst still providing great flood coverage to the sides of the road and beyond. It gives an uninterrupted view of any upcoming hazards both in front of the vehicle and to the sides.
Specifications
Materials | 6063 aluminium housing Lexan® polycarbonate lens |
---|---|
LED Manufacturer | OSRAM® (spot LEDs) / CREE® (flood LEDs) |
LED Number | 68 x 3W OSRAM® 24 x 5W CREE® |
Beam type | GEN4 hybrid flood & spot |
Beam throw | 1 lux @ 900m |
Output | 32,400 lumens |
Ingress Protection | IP68 |
Dimensions | 1,060mm (w) x 75mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs) |
Weight | 6kg |
Operating Voltage | 10 – 30v DC |
Current | 16.4A @ 13.5V / 8.2A @ 24V |
Colour Temp | 6000K |
LED Lifespan | 50,000 hours |
Certifications | CE, RoHS, C-Tick, CISPR15 |
Pack Contents

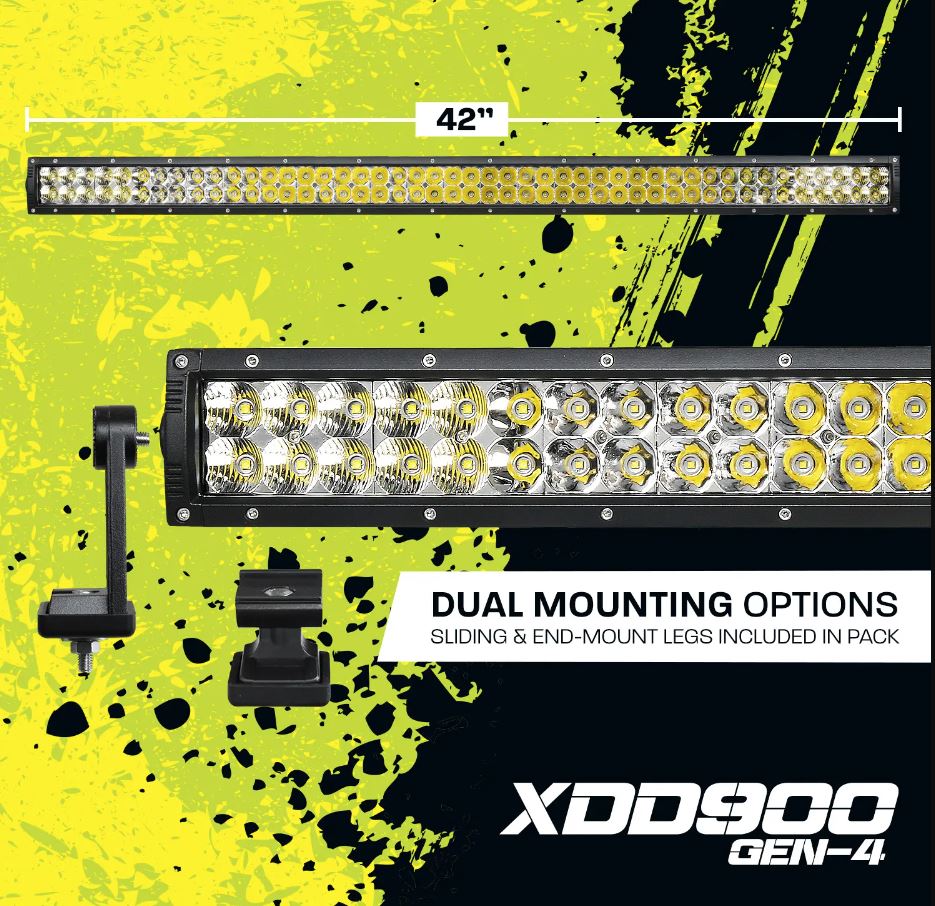

1x | 324w dual-row LED light bar |
---|---|
1x | heavy-duty wiring harness (off-road use only) |
1x | set of end-mount legs |
1x | set of sliding legs |
1x | Deutsch plug tail |
