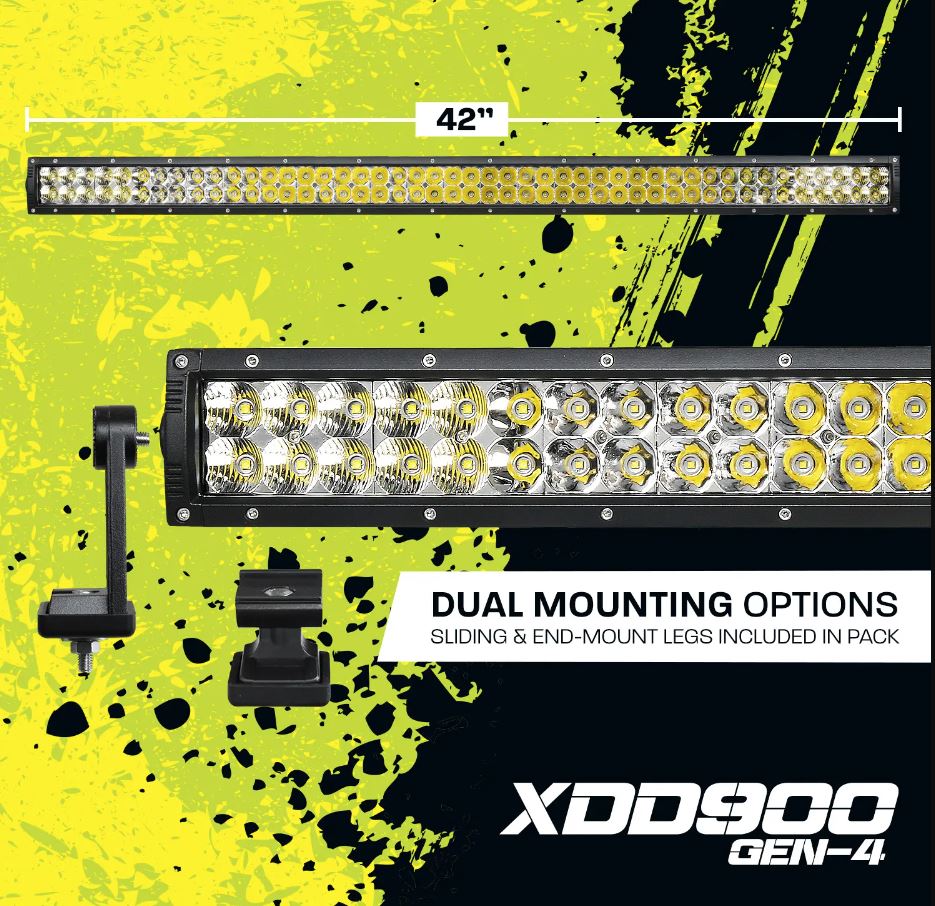

Hardkorr XD-GEN4 42″ Dual Row LED Light Bar (XDD900-G4)

SKU: XDD900-G4 Category: GTIN: 9.35047E 12



This powerful light bar utilises our exclusive dual-chip hybrid technology to produce an enormous 1 lux @ 900m forward of the vehicle whilst still providing great flood coverage to the sides of the road and beyond. It gives an uninterrupted view of any upcoming hazards both in front of the vehicle and to the sides.


Materials 6063 aluminium housing
Lexan® polycarbonate lens
LED Manufacturer OSRAM® (spot LEDs) / CREE® (flood LEDs)
LED Number 68 x 3W OSRAM®
24 x 5W CREE®
Beam type GEN4 hybrid flood & spot
Beam throw 1 lux @ 900m
Output 32,400 lumens
Ingress Protection IP68
Dimensions 1,060mm (w) x 75mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs)
Weight 6kg
Operating Voltage 10 – 30v DC
Current 16.4A @ 13.5V / 8.2A @ 24V
Colour Temp 6000K
LED Lifespan 50,000 hours
Certifications CE, RoHS, C-Tick, CISPR15

Pack Contents

1x 324w dual-row LED light bar
1x heavy-duty wiring harness (off-road use only)
1x set of end-mount legs
1x set of sliding legs
1x Deutsch plug tail
SKU: XDD900-G4 Category: GTIN: 9.35047E 12
