This powerful light bar utilises Hardkorr’s exclusive dual-chip hybrid technology to produce 1 lux @ 700m forward of the vehicle whilst still providing great flood coverage to the side of the road. It gives an uninterrupted view of any upcoming hazards both in front of the vehicle and to the sides.
Specifications
| Materials | 6063 aluminium housing Lexan? polycarbonate lens |
|---|---|
| LED Manufacturer | OSRAM? (spot LEDs) / CREE? (flood LEDs) |
| LED Number | 36 x 3W OSRAM? 24 x 5W CREE? |
| Beam type | GEN4 hybrid flood & spot |
| Beam throw | 1 lux @ 700m |
| Output | 22,800 lumens |
| Ingress Protection | IP68 |
| Dimensions | 692mm (w) x 75mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs) |
| Weight | 4.0kg |
| Operating Voltage | 10 ? 30v DC |
| Current | 12.0A @ 13.5V / 6.0A @ 24V |
| Colour Temp | 6000K |
| LED Lifespan | 50,000 hours |
| Certifications | CE, RoHS, C-Tick, CISPR15 |
Pack Contents

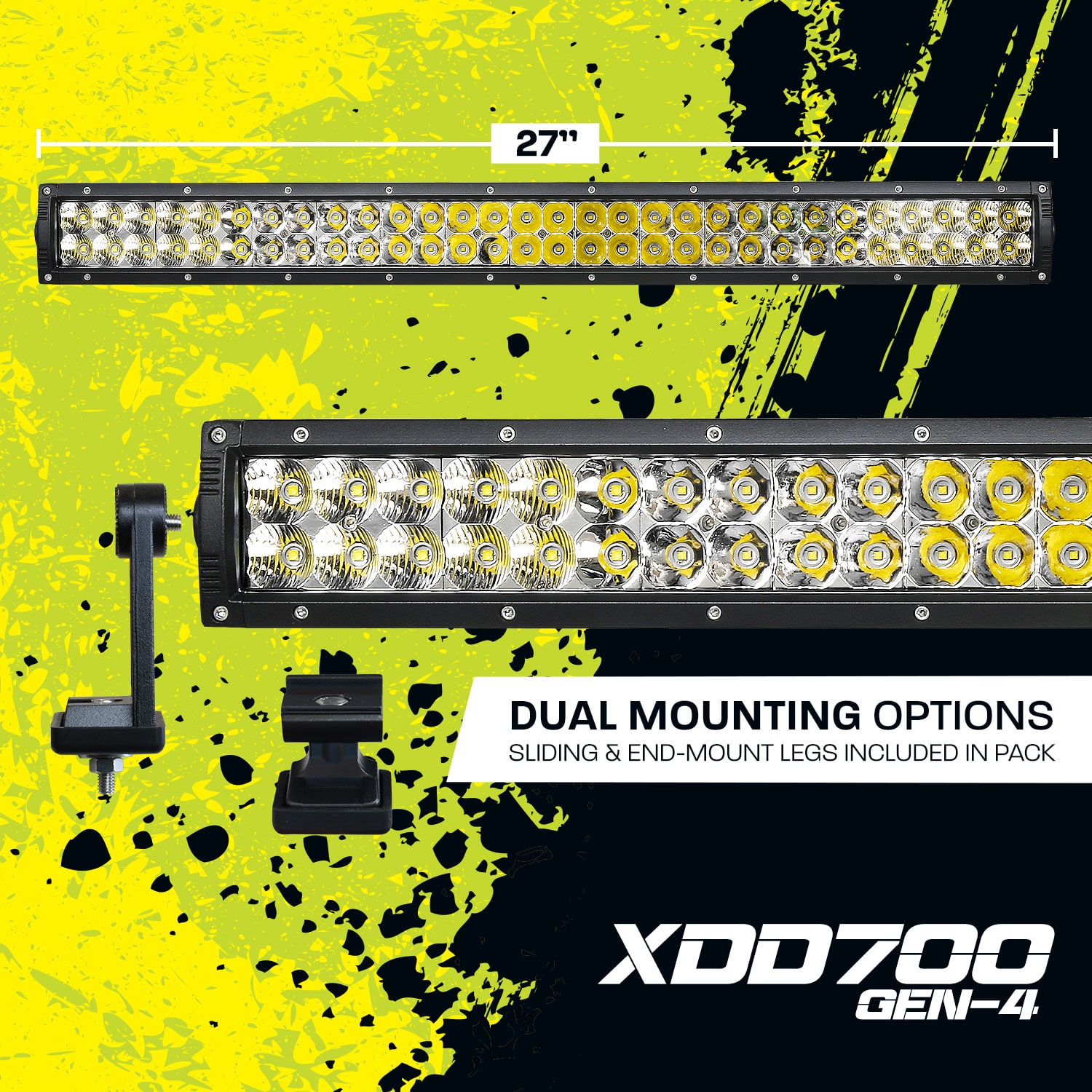

| 1x | 228w dual-row LED light bar |
|---|---|
| 1x | set of end-mount legs |
| 1x | set of sliding legs |
| 1x | Deutsch plug tail |
| Weight | 4.7 kg |
|---|---|
| Dimensions | 14 × 84 × 14 cm |
Brand
Hardkorr
Hardkorr produces Australia's most trusted LED camping and 4WD lighting, solar panels, 12v electrical and more.
