Hardkorr XD-GEN4 22? Dual Row LED Light Bar (XDD650-G4)

SKU: XDD650-G4 Category: GTIN: 9.35047E 12



This powerful light bar utilises Hardkorr’s exclusive dual-chip hybrid technology to produce 1 lux @ 650m forward of the vehicle whilst still providing great flood coverage to the side of the road. It gives an uninterrupted view of any upcoming hazards both in front of the vehicle and to the sides.


Materials 6063 aluminium housing
Lexan? polycarbonate lens
LED Manufacturer OSRAM? (spot LEDs) / CREE? (flood LEDs)
LED Number 36 x 3W OSRAM?
12 x 5W CREE?
Beam type GEN4 hybrid flood & spot
Beam throw 1 lux @ 650m
Output 16,800 lumens
Ingress Protection IP68
Dimensions 559mm (w) x 75mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs)
Weight 3.1kg
Operating Voltage 10 ? 30v DC
Current 10.6A @ 13.5V / 5.3A @ 24V
Colour Temp 6000K
LED Lifespan 50,000 hours
Certifications CE, RoHS, C-Tick, CISPR15

Pack Contents

1x 168w dual-row LED light bar

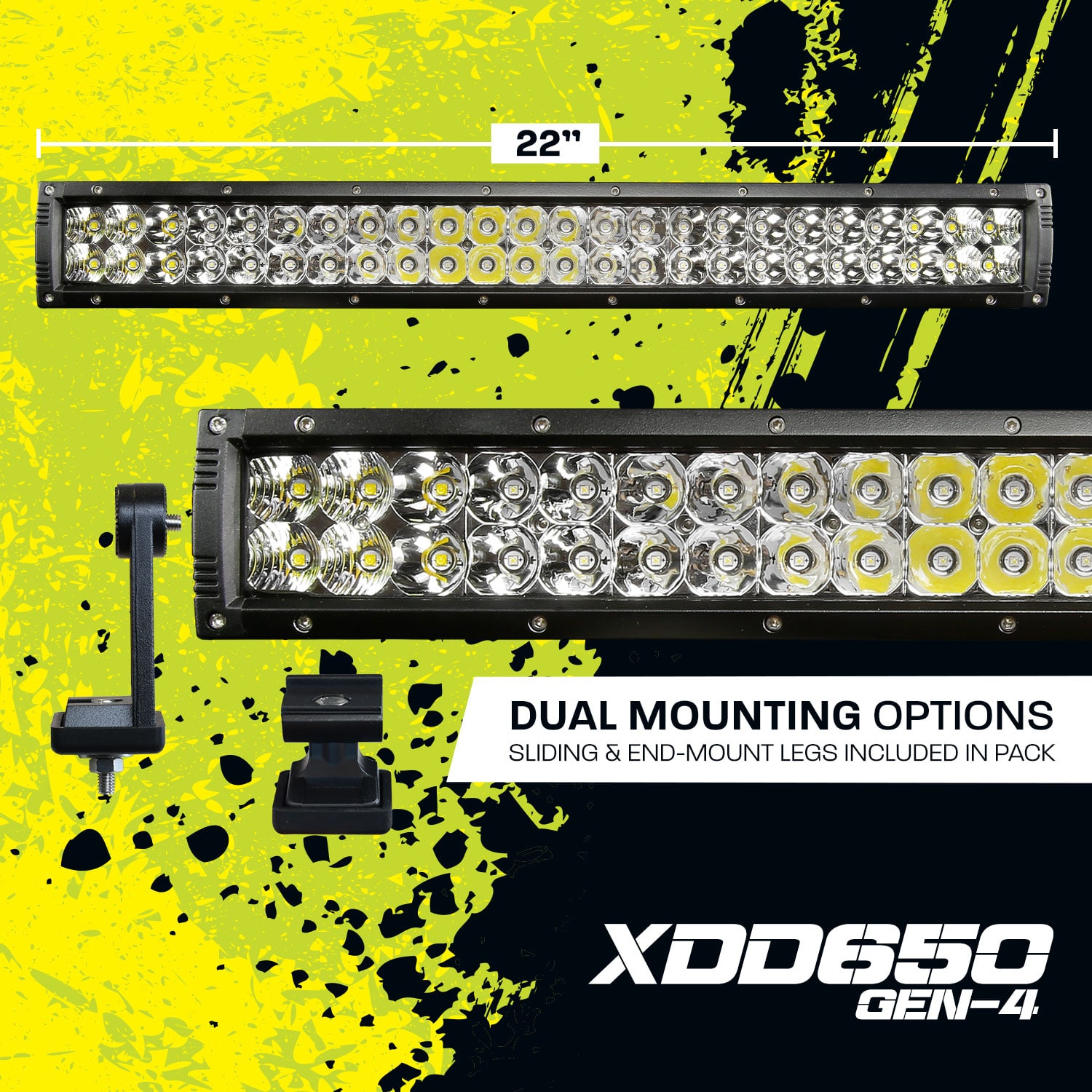

1x set of end-mount legs
1x set of sliding legs
1x Deutsch plug tail
SKU: XDD650-G4 Category: GTIN: 9.35047E 12
Weight 4 kg
Dimensions 14 × 72 × 14 cm
