Hardkorr Remote Battery Monitor with High-Precision 100V/500A Shunt
This remote battery capacity monitor, also known as a coulometer, uses a 500A shunt (350A continuous) to return highly accurate readings of battery voltage, live current draw (A) and charge level (Ah and %).
Specifications
| Working voltage | 8-100V DC |
|---|---|
| Max. current | 500A peak / 350A continuous |
| Working current draw | 10-12mA |
| Backlight current draw | 100mA |
| Standby current draw | 0.5-0.6mA |
| Accuracy | ±1% |
| Operating temperature | -10°C to 65°C |
| Weight | 410g |
| Dimensions | 59mm ⌀ x 20mm |
| Cut-out size | 54.5mm |
| Certifications | CE, RoHS, C-Tick |

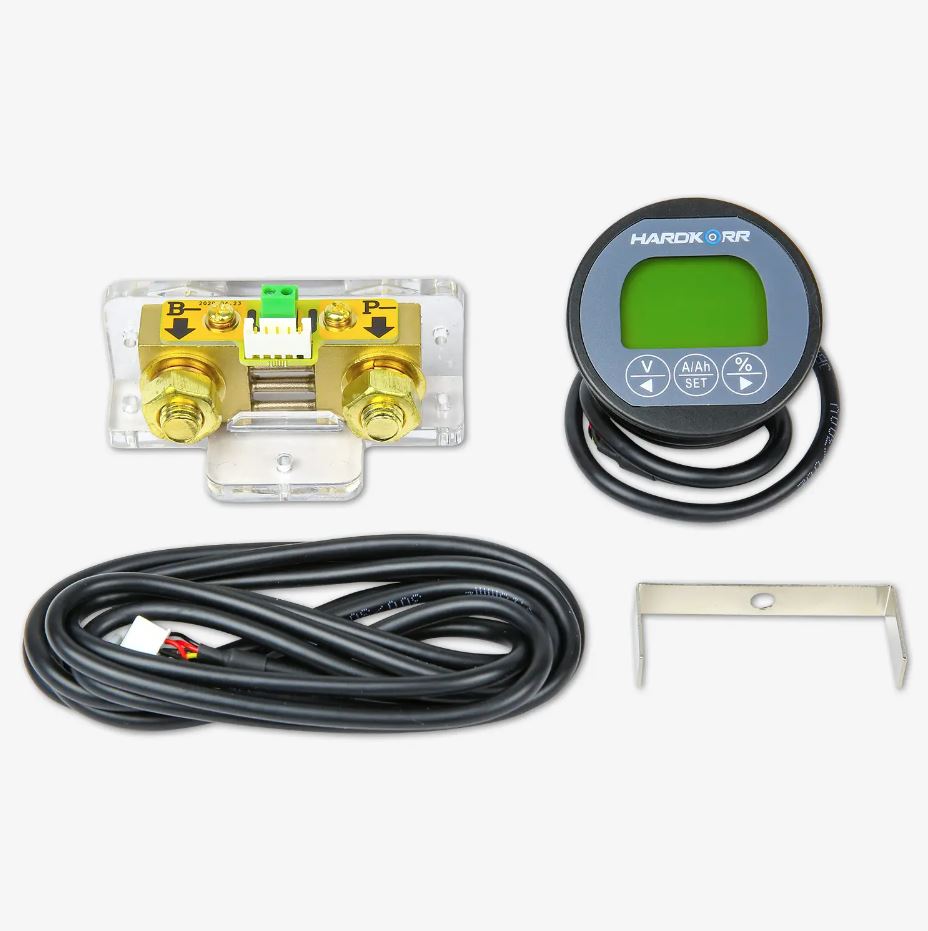

Pack Contents
| 1x | LCD display module |
|---|---|
| 1x | 100V/500A shunt |
| 1x | Shielded cable |
| 1x | Mounting bracket |
$129.00
Monitor your battery with precision using the Hardkorr Remote Battery Monitor, complete with a high-precision 100V/500A shunt. This advanced monitoring system is designed to provide accurate and real-time data on your battery’s performance, making it an essential tool for anyone relying on battery power for their vehicles, RVs, boats, or off-grid systems.
Key Features:
1. High-Precision Shunt:
- The Hardkorr Battery Monitor includes a high-precision 100V/500A shunt, ensuring accurate measurement of voltage, current, and power. This shunt allows for precise monitoring of your battery’s status, helping you to maintain optimal performance.
2. Real-Time Data Display:
- The remote monitor provides real-time data on your battery’s voltage, current, power, and state of charge. The clear, easy-to-read display ensures you have all the critical information you need at a glance.
3. Easy Installation:
- Designed for straightforward installation, the Hardkorr Battery Monitor comes with all necessary components and detailed instructions. The user-friendly design ensures you can quickly set up the monitor and start tracking your battery’s performance.
4. Versatile Compatibility:
- Compatible with a wide range of battery types and systems, including 12V, 24V, and 48V setups. Whether you’re using lead-acid, lithium, or AGM batteries, this monitor is versatile enough to handle various configurations.
5. Durable Construction:
- Built to withstand harsh environments, the Hardkorr Battery Monitor is constructed from high-quality materials that ensure long-lasting durability. It’s designed to perform reliably in both indoor and outdoor conditions.
6. User-Friendly Interface:
- The intuitive interface allows for easy navigation and operation. The monitor’s settings can be customized to suit your specific needs, providing flexibility and convenience in monitoring your battery system.
7. Low Power Consumption:
- Designed to consume minimal power, the Hardkorr Battery Monitor ensures it doesn’t drain your battery while providing continuous monitoring. This efficiency is critical for maintaining battery longevity and performance.
Optimize Your Battery Performance:
The Hardkorr Remote Battery Monitor with High-Precision 100V/500A Shunt is an indispensable tool for anyone looking to keep their battery systems in peak condition. With its accurate monitoring, easy installation, and durable design, it provides the insights you need to optimize your power usage and extend your battery’s lifespan.
Brand
Hardkorr
Hardkorr produces Australia's most trusted LED camping and 4WD lighting, solar panels, 12v electrical and more.
