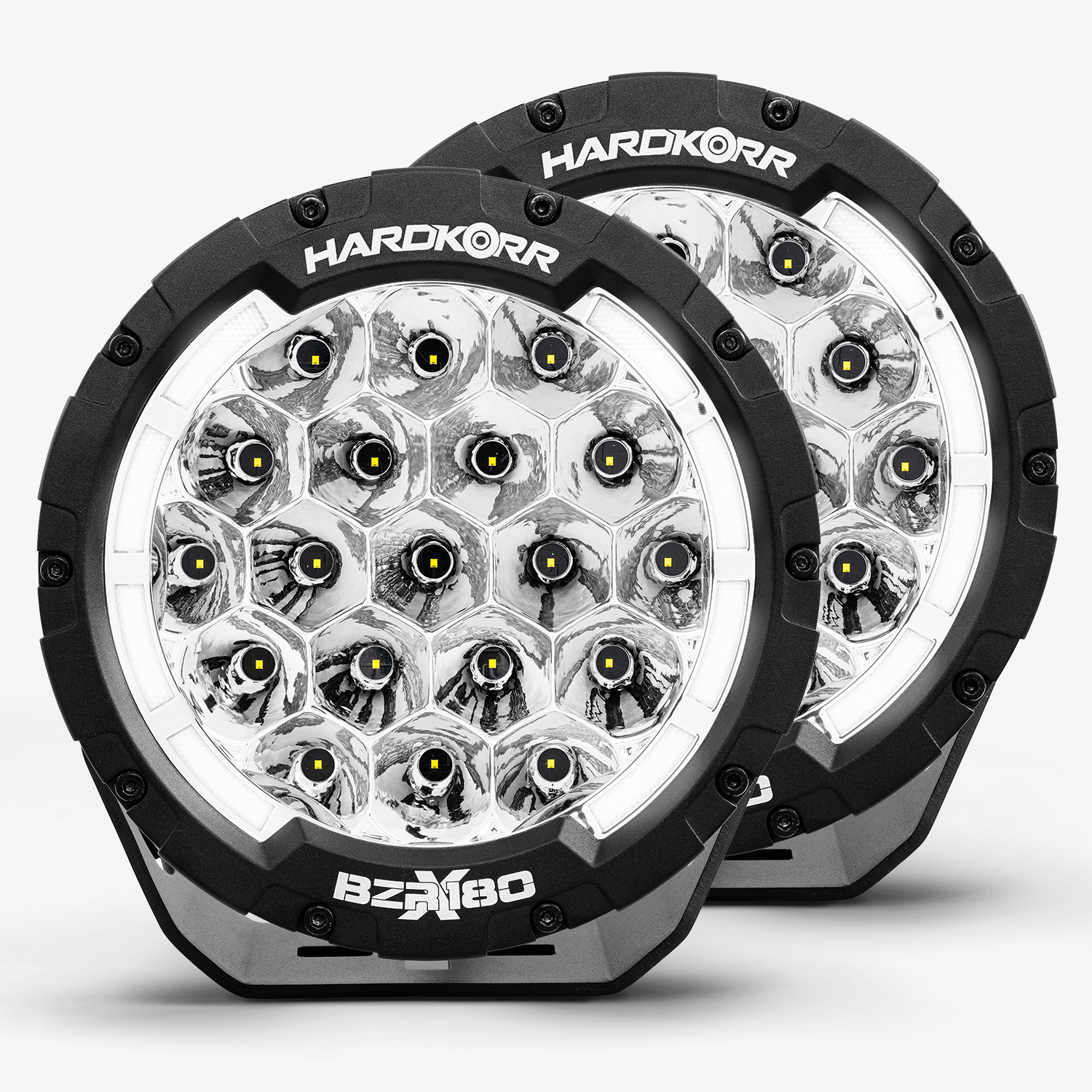

Hardkorr BZR-X Series 7? LED Driving Lights (Pair w/Harness)

SKU: HKBZRX180 Category: GTIN: 9.35047E 12

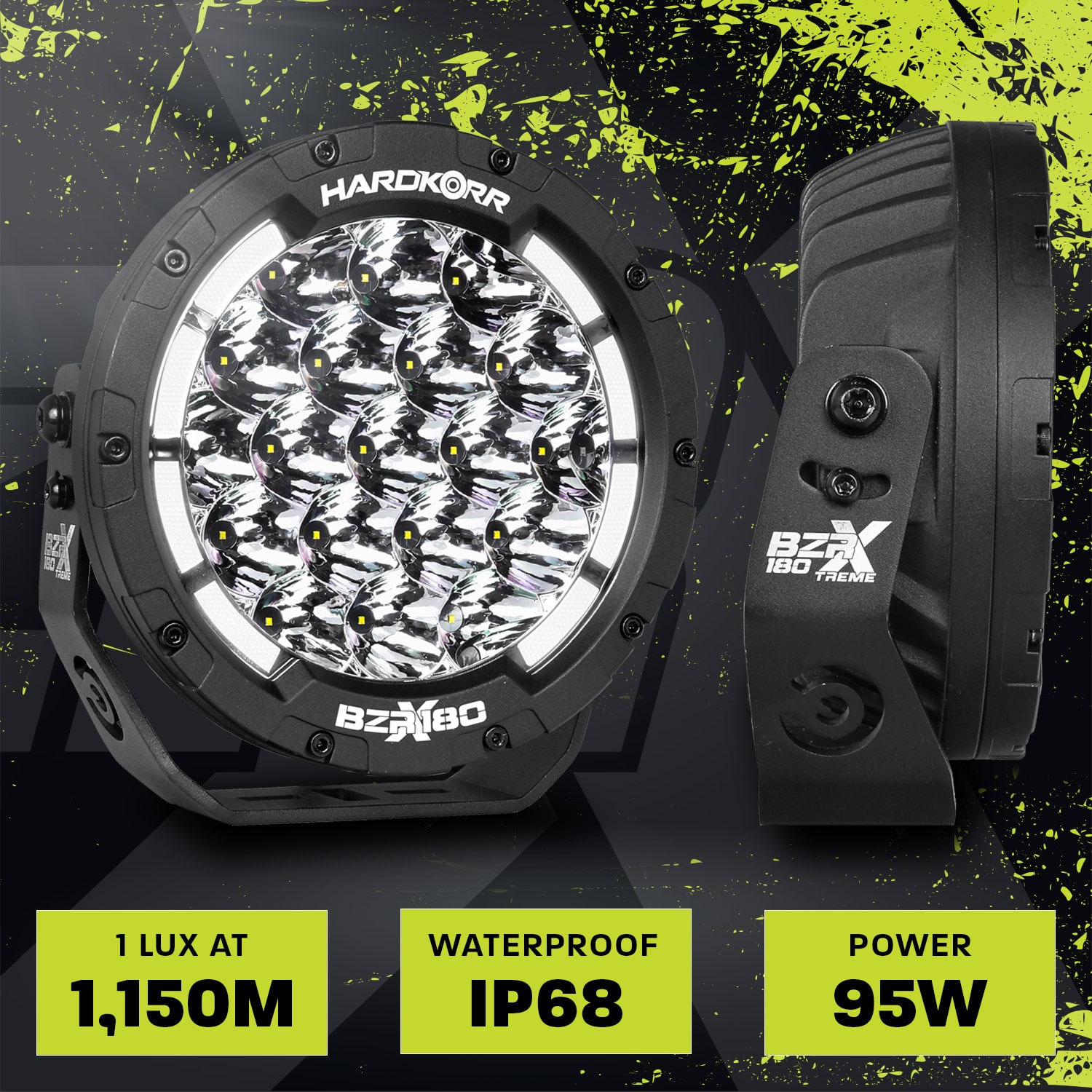

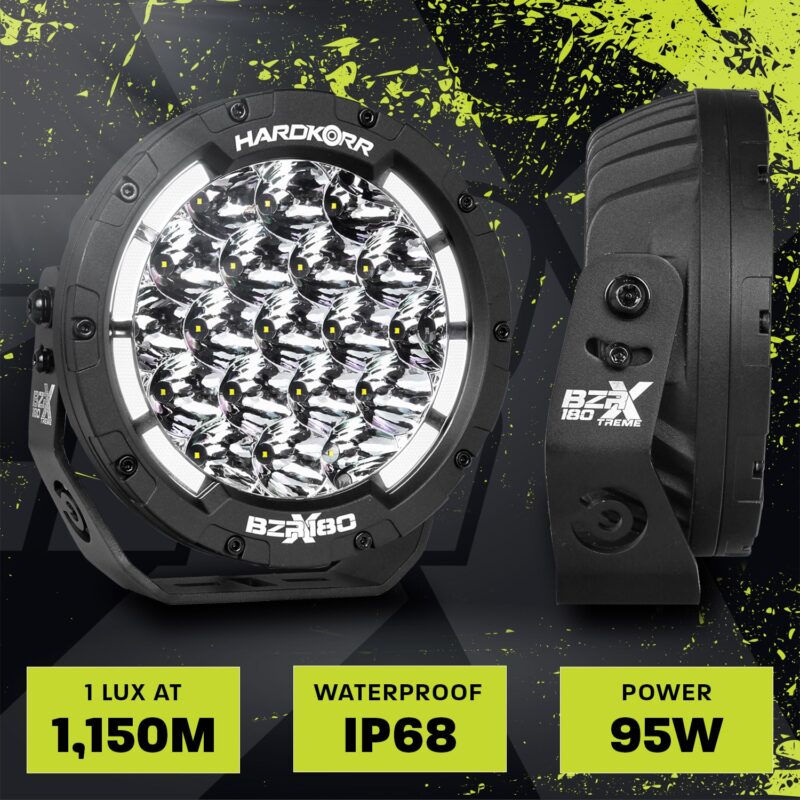

Hardkorr?s flagship BZR-X Series 7? LED driving lights produce a wide, even combination beam with a market-leading 1 lux @ 1,150m forward distance. Their ultra-slim design means they are particularly suited to vehicles with narrow mounting surfaces such as modern factory bullbars.


Materials ADC12 aluminium housing with AkzoNobel? powder coating
4mm 316 s/steel bracket with AkzoNobel? powder coating
UV-coated Lexan? polycarbonate lens
Dimensions 175mm (w) x 190mm (h) x 75mm (d) incl. bracket
LED Manufacturer Genuine Lumileds?
LED Number (each) 19 x 5w
Lux (pair) 1 lux @ 1,150m
Output (pair) 22,588 effective lumens
Beam Combination
Ingress protection rating IP68
EMC rating CISPR 15 Class 3
Impact resistance rating IK08 (5J)
Vibration resistance rating IEC 60068-2-6 & ISO16750-1
(15g R.M.S. @ 24-2000Hz)
Weight (each) 1.9kg
Operating Voltage 10 ? 30v DC
Current (each) 7.7A @ 12V / 3.75A @ 24V
Colour Temp 6000K
LED Lifespan 50,000 hours
Certifications CE, RoHS, RCM

Pack Contents

2x 95w LED driving light
2x 316 stainless steel mounting bracket
2x set security bolts & anti-vibration rubber base
1x Dual output wiring harness
SKU: HKBZRX180 Category: GTIN: 9.35047E 12
Weight 5 kg
Dimensions 34.5 × 45.5 × 11.5 cm
