Key features
- Pure sine wave form is ideal for sensitive devices
- High surge output (2 x constant)
- Australian GPO outlet
- Very high 92% efficiency
- Advanced protection circuitry: short-circuit, overload, over-temperature and more

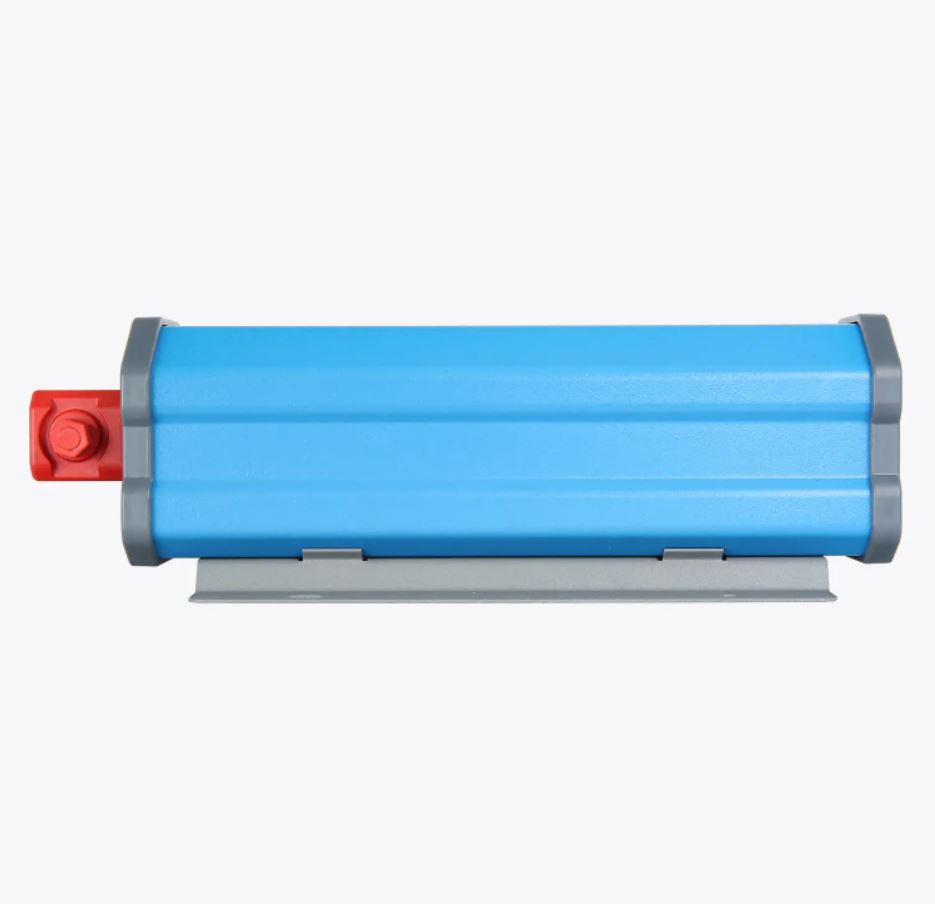

- Strong inbuilt mounting flange
Specifications
| AC output waveform | Pure sine wave (THC <3%) |
|---|---|
| AC output power | 600W |
| AC Surge power | 1200W |
| AC output voltage | 240V /- 5% |
| AC output frequency | 50/60Hz /- 0.05% |
| Nominal DC input voltage | 12V |
| DC input voltage range | 10.5V – 15V |
| Input current (max) | 60A DC |
| No load current draw | 0.5A DC |
| Efficiency | 92% |

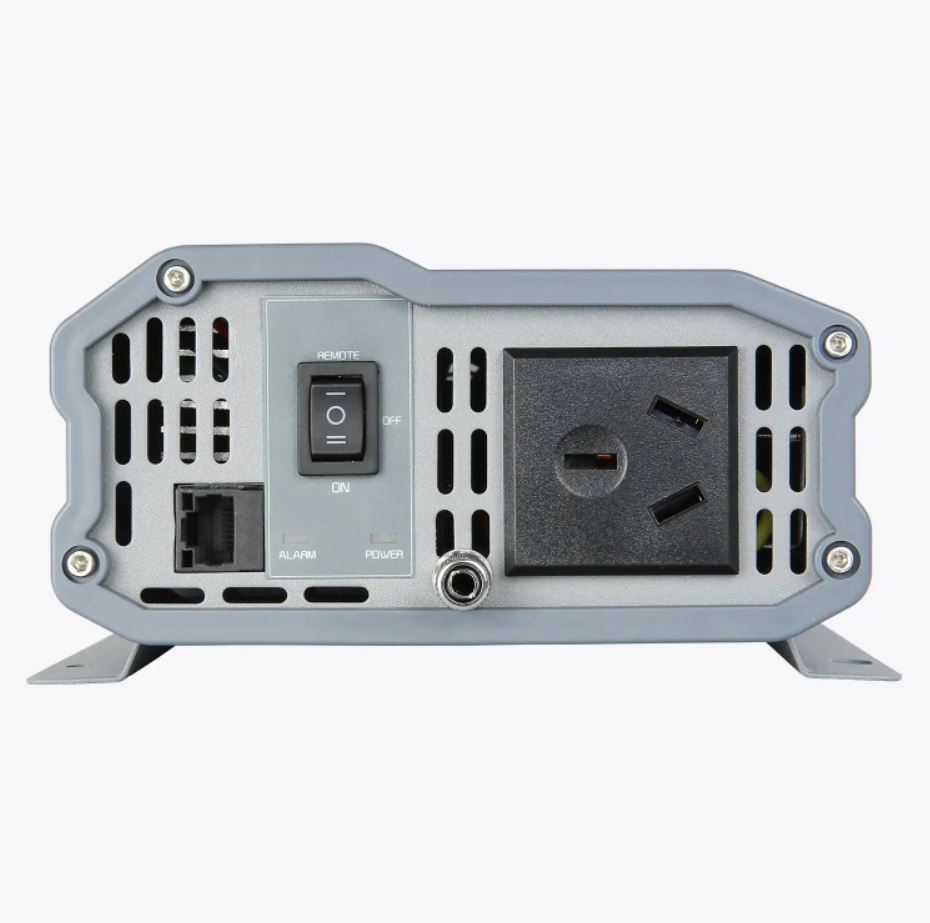

| Outlets | 1 x IEC Type I |

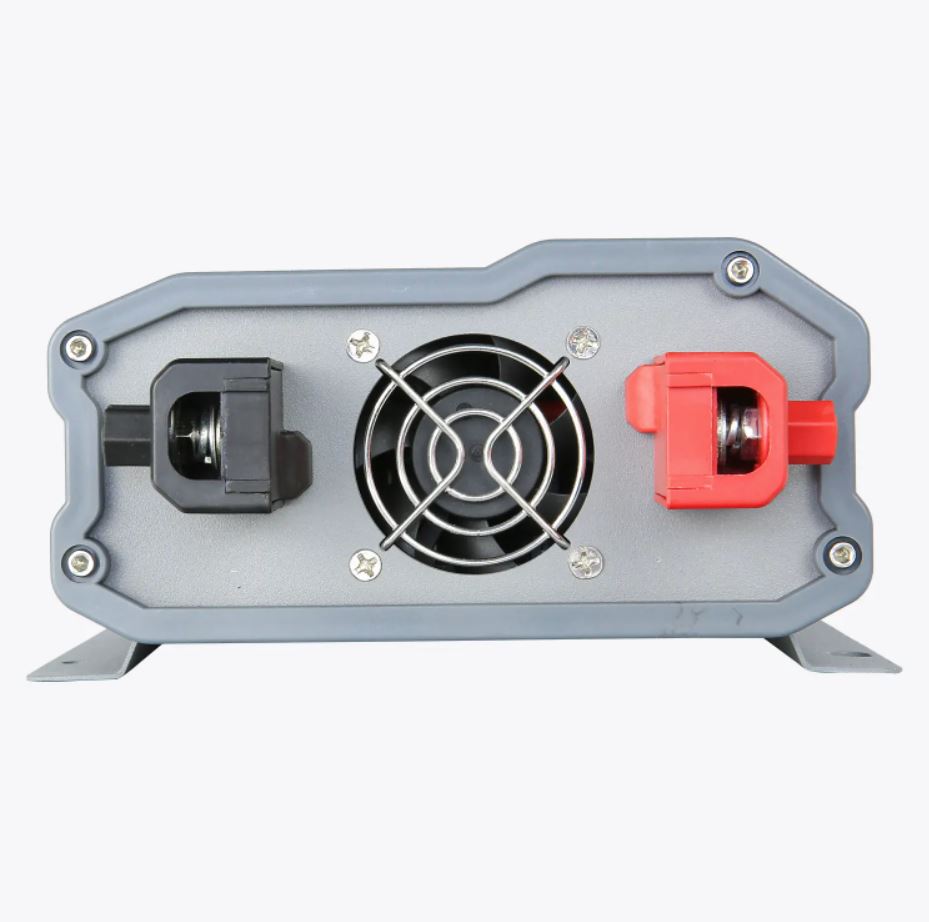

| Cooling fan | Automatic temperature controlled |
| Thermal shutdown | 65°C ( /- 5°C) |
| High battery voltage shutdown | 15.5V DC ( /- 0.3V DC) |
| Low battery voltage alarm/shutdown | Alarm 10.5V DC; shutdown 10.0V DC ( /- 0.3V DC) |
| Internal fuse size | 80A (4 x 20A) blade |
| Weight | 1.9kg |
| Dimensions | 225mm x 166mm x 83mm |
| Certifications | AS/NZS 4763:2011, UL 458, IEC/EN 62368-1 |
Pack Contents

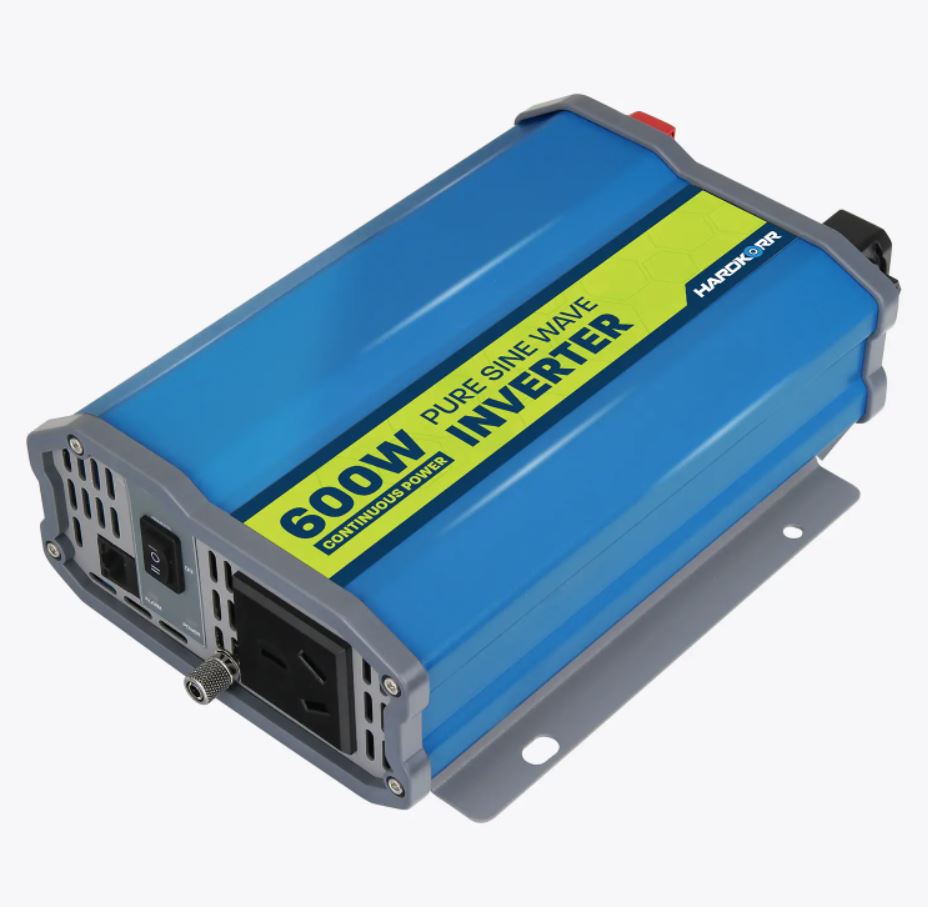

| 1x | 600W pure sine wave inverter |
|---|---|
| 1x | 80A ANS inline fuse |
| 1x | Replacement label |
Brand
Hardkorr
Hardkorr produces Australia's most trusted LED camping and 4WD lighting, solar panels, 12v electrical and more.
