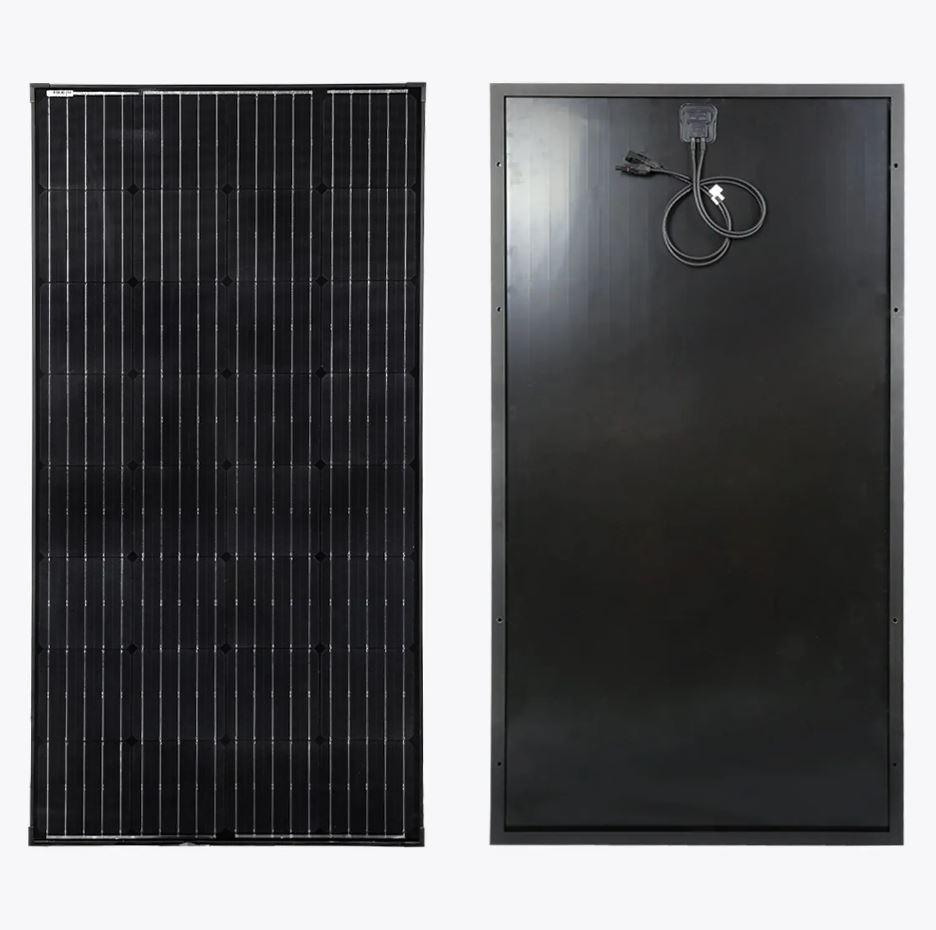

Key features
- 3.2mm tempered low-iron glass: optically clear with high impact resistance
- High-efficiency A-grade monocrystalline solar cells: for better performance & longer lifespan

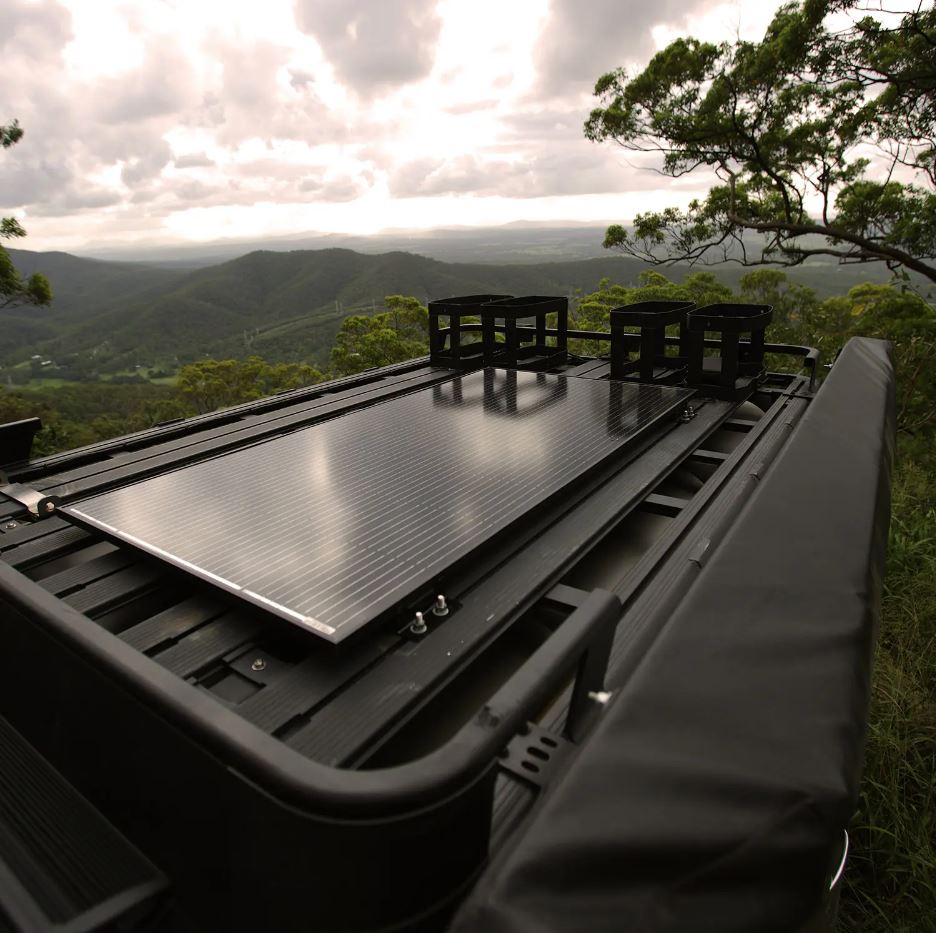

- Black frame, cells and substrate: looks great on any vehicle

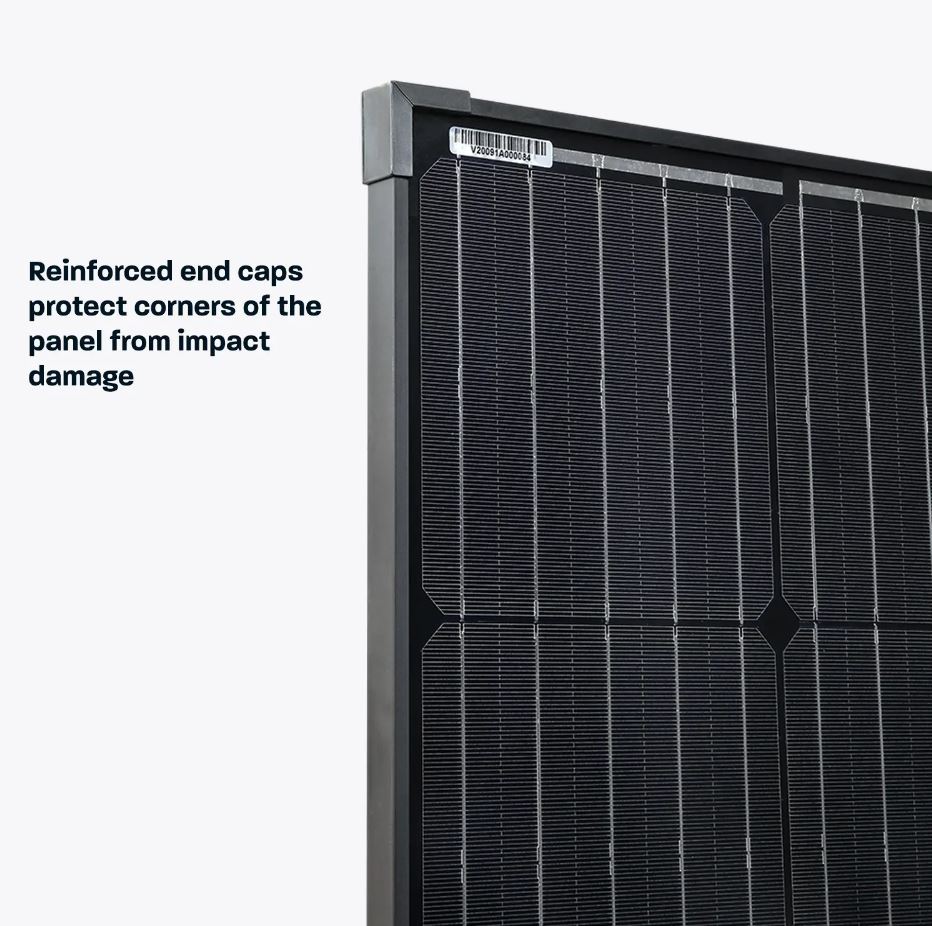

- 17mm anodized aluminium frame: 30% lighter than regular solar panels
- High-quality MC4 plugs w/0.8m cable: ensures a secure, waterproof connection
Specifications
Materials | Anodized aluminium frame A-grade monocrystalline solar cells 3.2mm tempered low-iron glass covering |
---|---|
Wattage | 170W |
Working max. voltage | 17.80V |
Working max. current | 9.55A |
Open circuit | 21.00V |
Short circuit | 10.58A |
Solar cell efficiency | 20.31% |
Dimensions | 1320mm (l) x 664mm (w) x 17mm (h) |
Weight | 9.98kg |
Connector type | MC4 |
Max. system voltage | 1000V |
Operating temperature | -40°C to 85°C |
Certifications | CE, RoHS, C-Tick |
Pack Contents
1x | 170w solar panel |
---|
