Key features
- Built-in diode prevents battery from discharge at night
- Included controller protects batteries from overcharge
- Ultra-thin, lightweight and easy to transport
- Front face coated in our exclusive Crocskin® cell armour
- Frameless design, no rigid or breakable glass
- Fully waterproof and weatherproof
Specifications (12V)
Cell type | A-grade monocrystalline silicon |
---|---|
Wattage | 15W |
Max. voltage | 17.96V |
Max. current | 830mA |
Open circuit | 22.5V |
Short circuit | 920mA |
Dimensions | 270mm x 450mm |
Cable gauge | 2 x 2.5mm2 (14AWG) |
Suitable battery types | Lithium, AGM, Gel, Wet/Flooded |
Ingress Protection | IP65 |
Weight | 0.5kg |
Operating temperature | -20°C to 80°C |
Certifications | CE, RoHS, C-Tick |
Specifications (24V)
Cell type | A-grade monocrystalline silicon |
---|---|
Wattage | 15W |
Max. voltage | 35.28V |
Max. current | 420mA |
Open circuit | 42.3V |
Short circuit | 520mA |
Dimensions | 270mm x 450mm |
Cable gauge | 2 x 2.5mm2 (14AWG) |
Suitable battery types | AGM, Gel, Wet/Flooded |
Ingress Protection | IP65 |
Weight | 0.5kg |
Operating temperature | -20°C to 80°C |
Certifications | CE, RoHS, C-Tick |

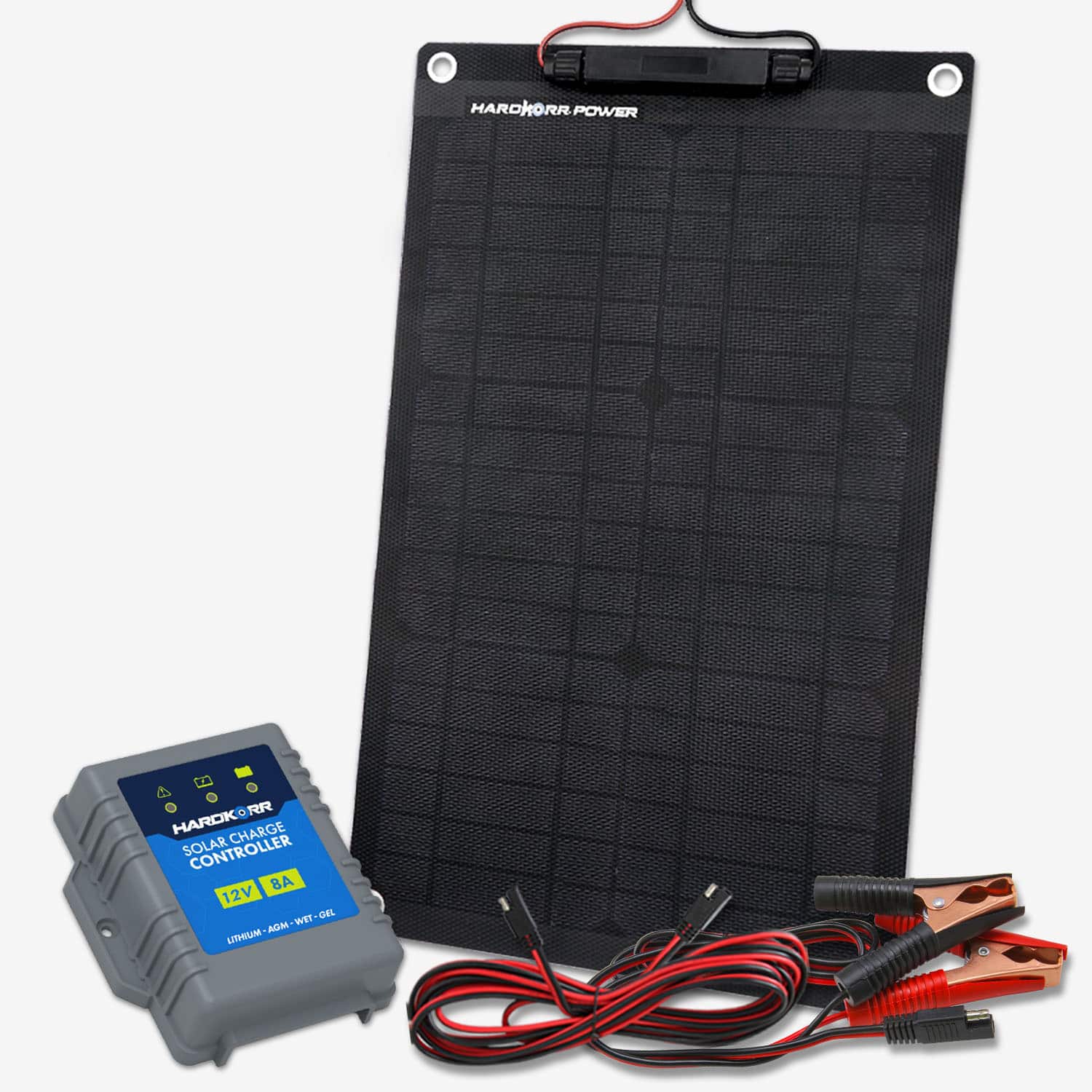

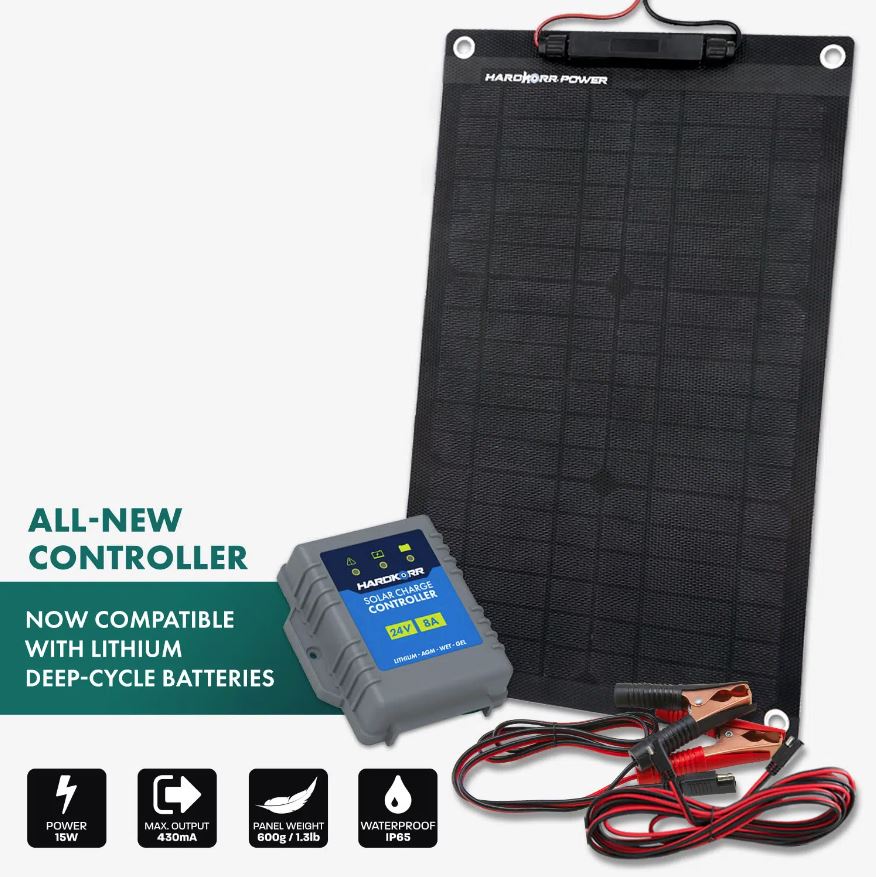

Pack Contents
1x | 15w solar panel |
---|---|
1x | 8A waterproof (IP65) solar controller |
1x | 5m lead with bullet/SAE plugs |
1x | Bullet/SAE to battery clamp cable |
