Key benefits
- ULTIMATE CELL EFFICIENCY: certified A-grade monocrystalline cells with solid copper backing and 20 points of contact.
- UNRIVALLED DURABILITY: Military-grade 1680D ballistic nylon canvas outer and bag is water repellent and highly abrasion resistant.
- OPTIMAL ENERGY CAPTURE: Inbuilt legs are set at ideal angle for maximum solar energy absorption.
- SIMPLE SETUP: Product includes detachable 6-stage inline smart solar regulator and all necessary cables to get you up and running quickly.
- STAYS IN PLACE: Reinforced eyelets and included tent pegs allow the mat to be anchored to the ground in windy weather.
- EASILY TRANSPORTABLE: The mat weighs just 8.6kg and includes a carry bag with pocket for your regulator and cables.
Specifications
Cell type | A-grade monocrystalline silicon |
---|---|
Cell efficiency | 20.38% |
Cell backing | Solid copper |
Cell coating | Crocskin® cell armour |
Canvas | 1680D Ballistic Nylon |
Wattage | 150W |
Working max. voltage (Vmp) | 18.00V |
Working max. current (Imp) | 8.33A |
Open circuit voltage (Voc) | 21.24V |
Short circuit current (Isc) | 9.17A |
Ingress Protection (IP) Rating | IP64 (splashproof/rainproof) |
Dimensions (folded) | 710mm x 530mm x 30mm |
Dimensions (unfolded) | 1830mm x 700mm |
Weight | 8.6kg (excl. controller & cables) 10.3kg (incl. controller & cables) |
Operating temperature | -30°C to 70°C |
Certifications | CE, RoHS, C-Tick |

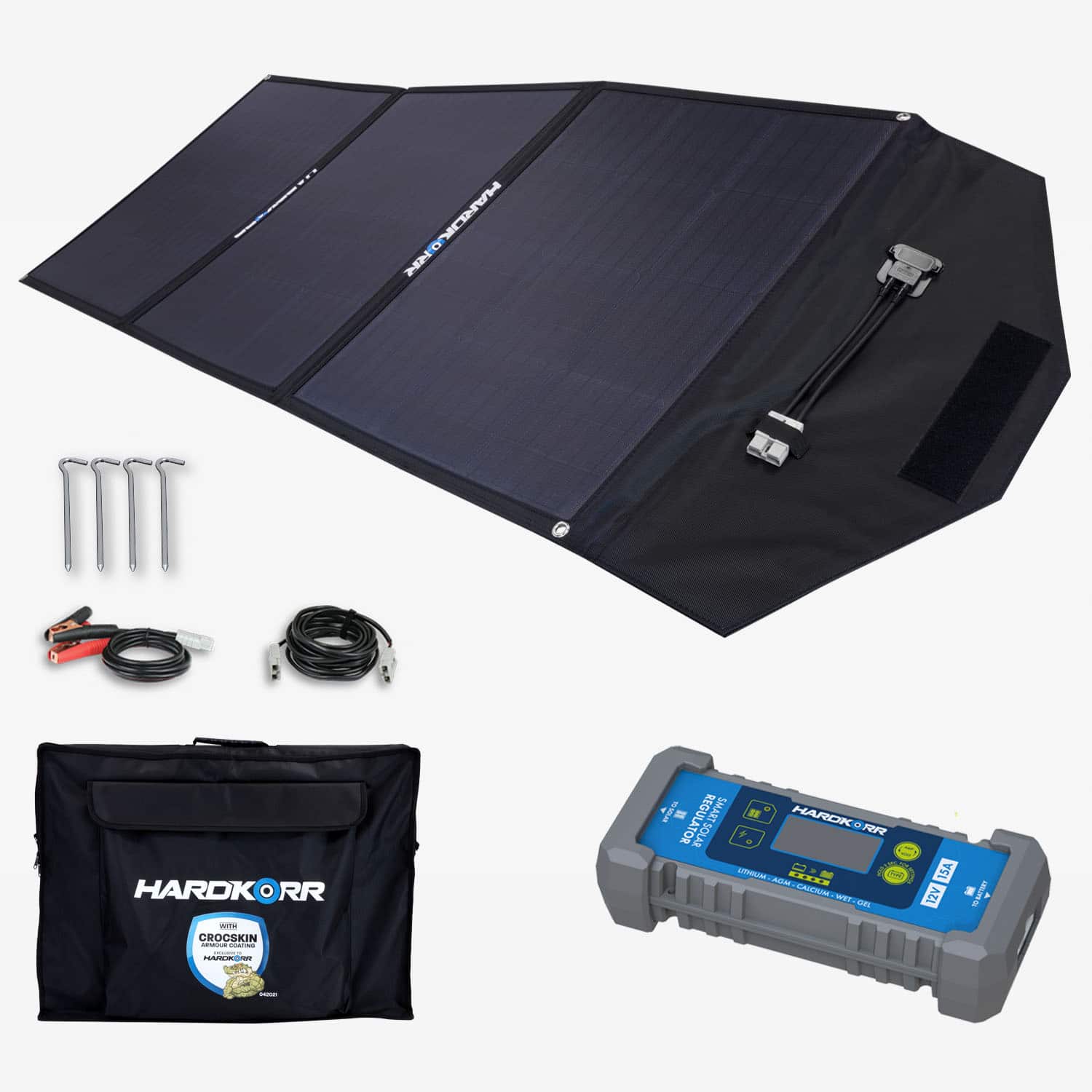

Pack Contents
1x | 150w solar panel |
---|---|

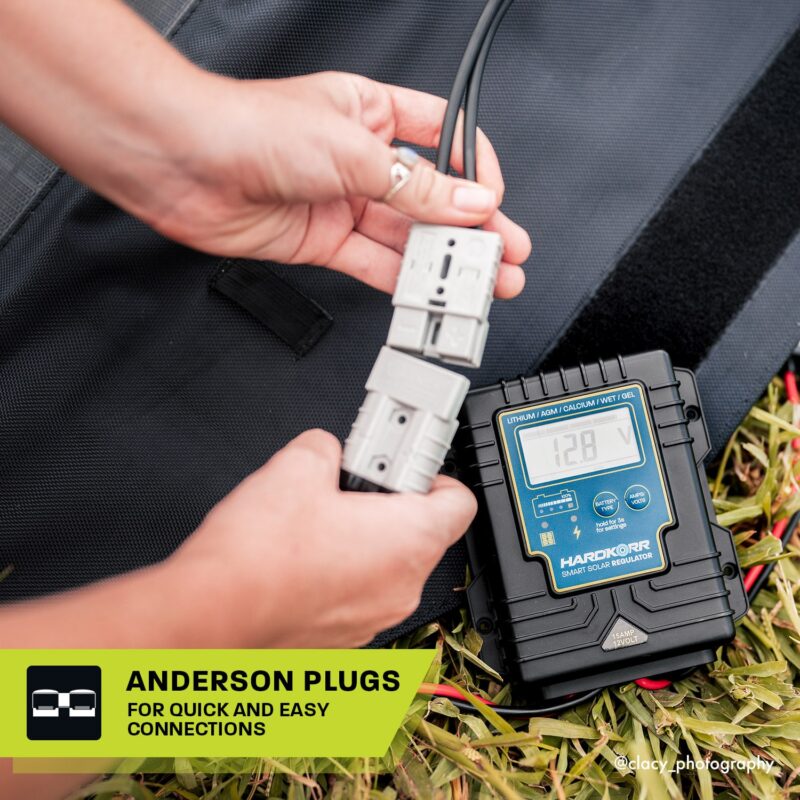

1x | 15A 6-stage inline PWM smart solar regulator |
1x | 5m lead with Anderson plugs |
1x | 1.5m Anderson-style plug to battery clamp cable |
4x | Tie down pegs |
1x | Protective carry bag |
