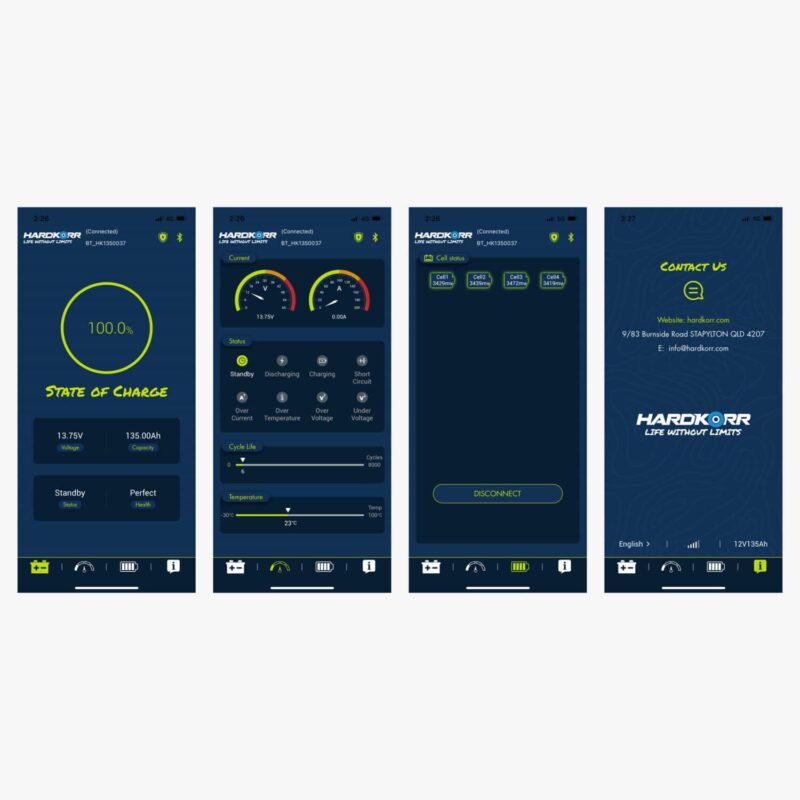

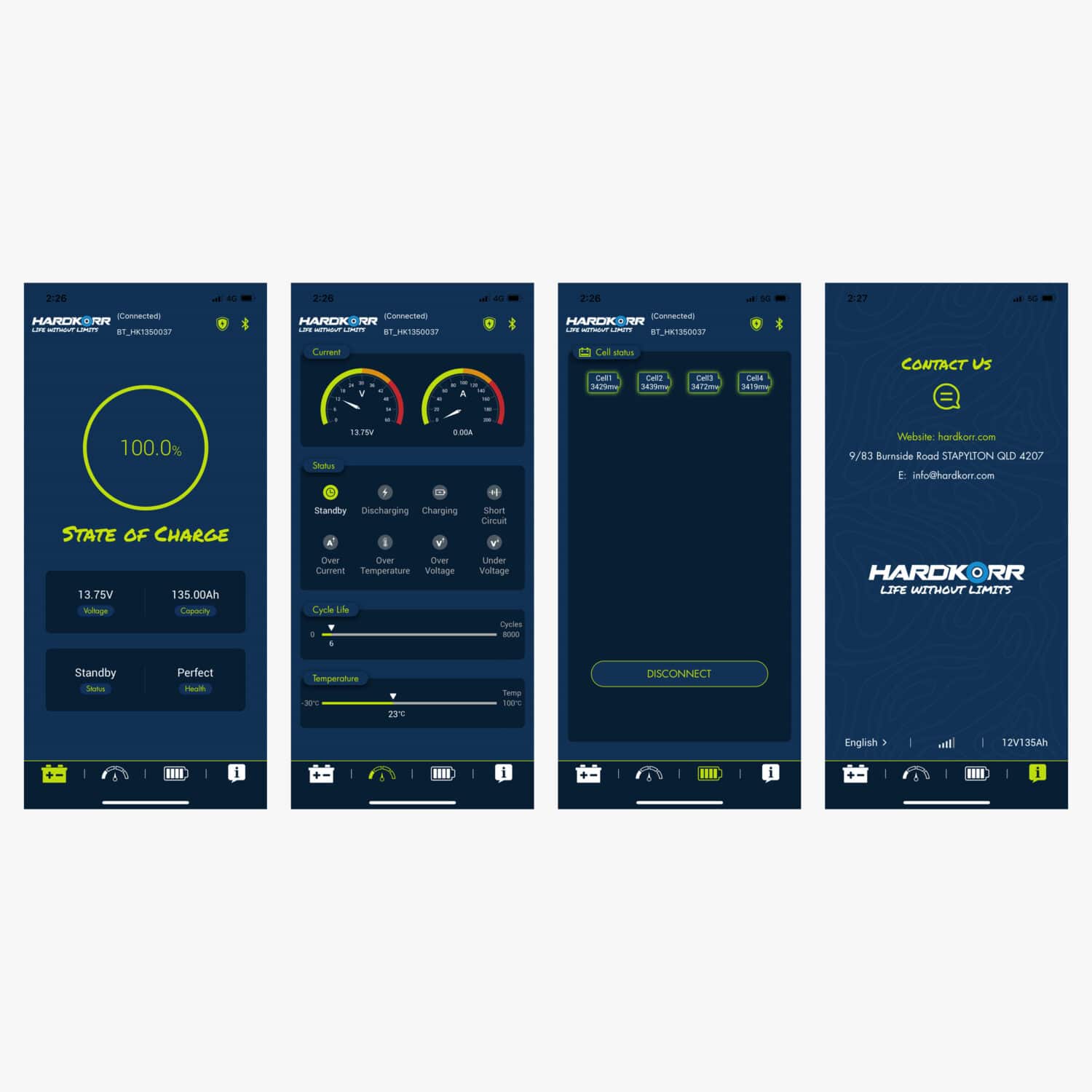

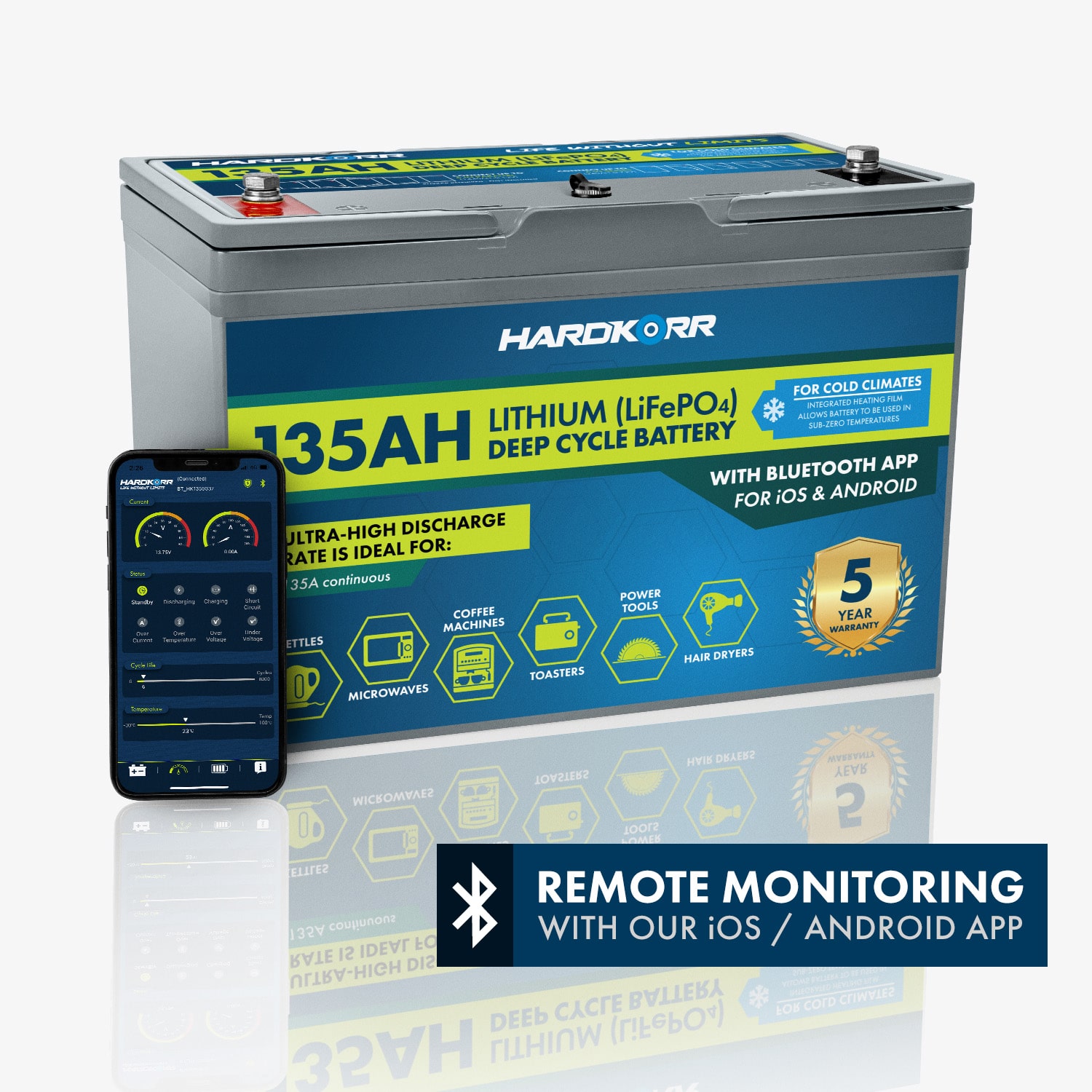

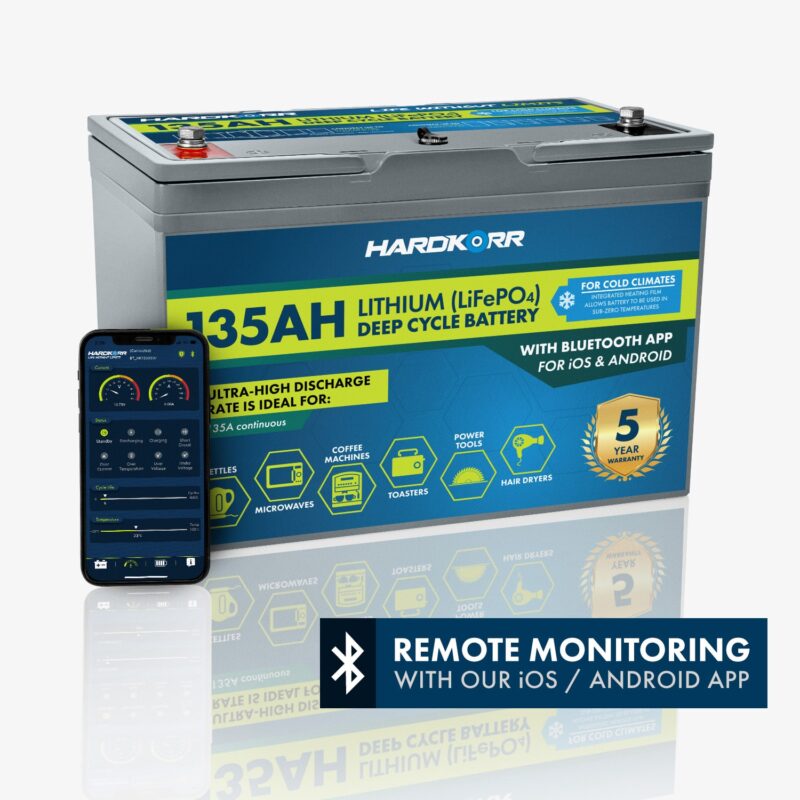

Hardkorr latest range of 135Ah lithium (LiFePO4) deep-cycle batteries are the most reliable, technologically-advanced batteries we have ever manufactured. With Bluetooth® monitoring, outstanding performance characteristics, full international certification and 135Ah of usable power into a standard Group 27 (N70) size case, you’ll never be caught short of 12v power again!
Specifications
Nominal voltage | 12.8V |
---|---|
Capacity (C20) | 135Ah |
Max series/parallel config | 6S/6P |
Normal charge voltage | 14.4V ± 0.2V |
Standard / fast charge current | 27A / 67A |
Max discharge current (constant) | 135A (1C)* |
Max discharge current (pulse) | 600A* |
Discharge cut-off voltage | 10.0V |

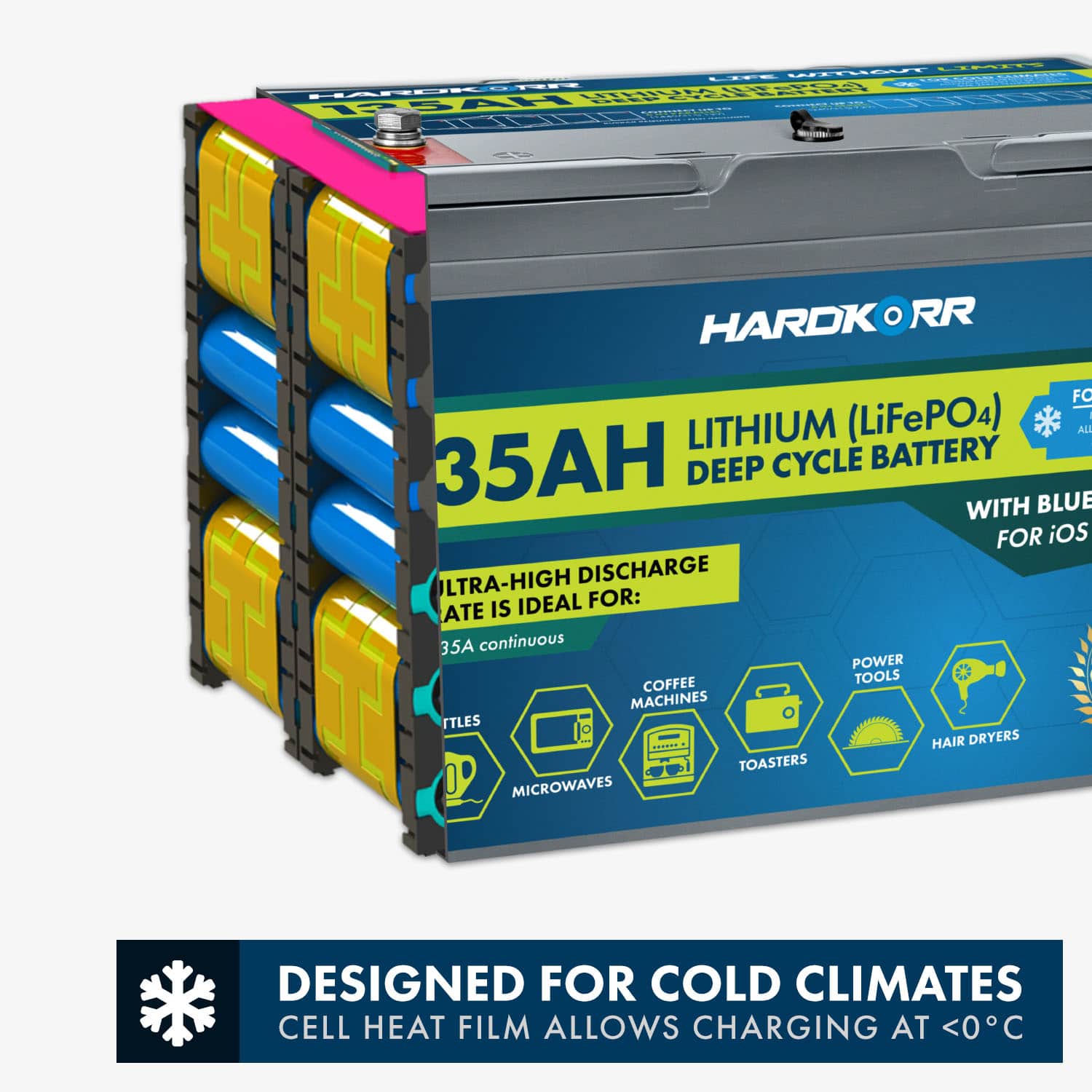

Charge temp | 0°C to 55°C |
Discharge temp | -20°C to 60°C |
Storage temp | -5°C to 45°C |
Ingress protection | IP64 |
Self-discharge | <3% per month |
Weight | 14.0kg |
Dimensions | 305mm x 169mm x 210mm (Group 27) |
Certifications | UN 38.3, UL 1642, IEC 62133-2:2017, IEC 62619:2017, CE |
