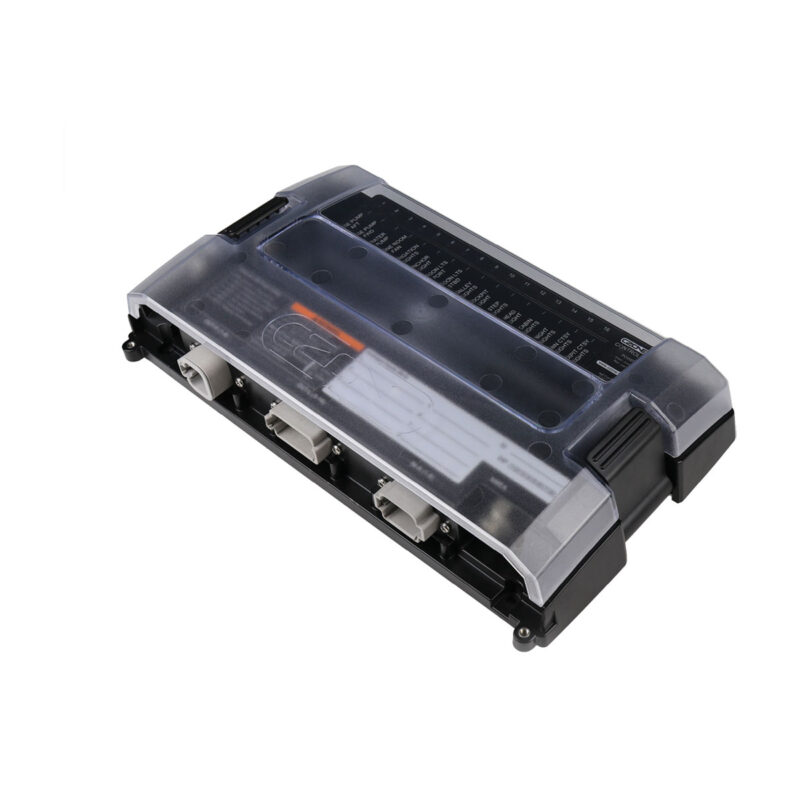

The Control 1 combines multiple input and output devices into a single rugged IPX5 module featuring industry leading CZone digital switching functionality and complete mechanical fuse and bypass on each circuit.
Features
• Complete CZone Control and Monitoring system in a single box
• Modular design provides system options for wide range of vessels & RV?s
• Compatible with marine multi-function and black box chartplotter/fishfinders
• Equipped with advanced core CZone feature set
• Competitive price point for cost sensitive applications
• ABYC compliant ATC fusing and mechanical bypass for redundancy
• PWM light dimming capability & smooth start
• Monitor tank levels, battery volts, temperature and pressure using industry standard sensors
• Bilge Pump Run Detection allows pump control and monitoring from a single wire
• Status LED?s for all outputs, DC supply & NMEA2000
• Additional volt monitoring on main DC connection and N2K
• In-built load shedding allows non-necessary loads to be turned off to preserve battery life
• USB port allows full system firmware & config updates (no PC or adapters required)
