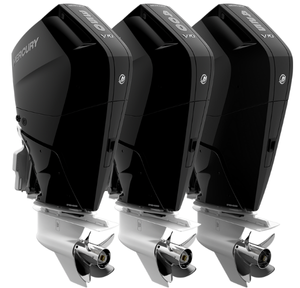

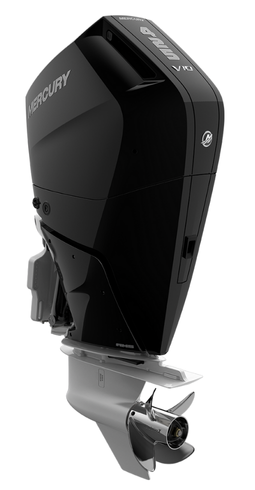

350HP - 425HP V10 VERADO
No sacrifices, no compromises, no apologies!
Mercury 5.7L V10 AMS 350-425hp Verado outboards deliver exceptional performance with the 5.7L displacement, quad-cam design, and multi-port fuel injection, offering impressive speed, torque, and efficiency. Lightweight build, powerful 150-amp alternator, and compatibility with a wide range of boats make V10 highly versatile. Designed for comfort and ease of use, it runs 42% quieter than competitors, minimizes vibration with AMS, and offers simple maintenance and reliable performance on regular fuel.
CHOOSE YOUR ENGINE
|
HP/kW @ Prop
|
350/257
|
|
Max RPM (WOT)
|
5800-6400
|
|
Cylinders / Configuration
|
V10 [64 degree] with 40-valve Dual Overhead Cam [DOHC]
|
|
Displacement (CID/Liters)
|
349 / 5.7L
|
|
Bore x Stroke (mm/in)
|
92 x 86 / 3.6 x 3.4
|
|
Induction System
|
Naturally aspirated, performance-tuned intake manifold
|
|
Ignition
|
SmartCraft PCM 112 Digital Inductive
|
|
Fuel System
|
Electronic Fuel Injection [EFI] Computer Controlled with Advanced Range Optimization
|
|
Alternator Amp/Watt
|
150 amp/1890 watt belt-driven + [Idle Charge]
|
|
Midsection Design
|
Advanced MidSection (AMS)
|
|
Starting
|
Electric Start with SmartStart Protection
|
|
Gearcase / Ratio
|
6.4″ 2.08:1 [RH/LH]
|
|
Gear Shift
|
F-N-R Electronically-Actuated Shifting
|
|
Controls
|
Digital Throttle and Shift (DTS)
|
|
Steering
|
Electro-Hydraulic Power Steering or Electric Steering
|
|
Mounting Centers
|
Minimum 26-inch (660 mm) Centers
|
|
Engine Protection System
|
SmartCraft Engine Guardian
|
|
Recommended Oil
|
Mercury or Quicksilver 25W-40
|
|
Oil Capacity
|
10 qts/9.5 L
|
|
Fuel Requirements
|
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
|
|
Dry Weight (lbs/kg)
|
695/315 L – 20″ (CL), 709/321 XL – 25″ (CXL), 717/325 XXL – 30″ (CXXL), 723/328 XXXL – 35″ (CXXXL)
|
|
Colors
|
Phantom Black, Warm Fusion White, Cold Fusion White, Pearl Fusion White
|
|
Shaft Length (in/mm)
|
20 (508), 25 (635), 30 (762), 35 (889)
|
|
Battery Net Charging
|
50+ Amps @700 RPM 90+ Amps @Above 4000 RPM
|
|
Exhaust System
|
Through Prop w/ Advanced Sound Control
|
|
Cooling System
|
Water-cooled with Thermostat Control | Below Surface Water Outlet
|
|
Lubrication System
|
Integrated Wet sump
|
|
Trim/Tilt System
|
Power Trim and Tilt
|
|
Maximum Tilt Range
|
73° (-6° to 67°)
|
|
Maximum Trim Range
|
20° (-6 to 14°)
|
|
Troll Control RPM Limit
|
550-1000
|
|
Gear Lube Capacity
|
Standard: 1.58L, Counter: 1.38L
|
|
HP/kW @ Prop
|
400/294
|
|
Max RPM (WOT)
|
5800-6400
|
|
Cylinders / Configuration
|
V10 [64 degree] with 40-valve Dual Overhead Cam [DOHC]
|
|
Displacement (CID/Liters)
|
349 / 5.7L
|
|
Bore x Stroke (mm/in)
|
92 x 86 / 3.6 x 3.4
|
|
Induction System
|
Naturally aspirated, performance-tuned intake manifold
|
|
Ignition
|
SmartCraft PCM 112 Digital Inductive
|
|
Fuel System
|
Electronic Fuel Injection [EFI] Computer Controlled with Advanced Range Optimization
|
|
Alternator Amp/Watt
|
150 amp/1890 watt belt-driven + [Idle Charge]
|
|
Midsection Design
|
Advanced MidSection (AMS)
|
|
Starting
|
Electric Start with SmartStart Protection
|
|
Gearcase / Ratio
|
6.4″ 2.08:1 [RH/LH]
|
|
Gear Shift
|
F-N-R Electronically-Actuated Shifting
|
|
Controls
|
Digital Throttle and Shift (DTS)
|
|
Steering
|
Electro-Hydraulic Power Steering or Electric Steering
|
|
Mounting Centers
|
Minimum 26-inch (660 mm) Centers
|
|
Engine Protection System
|
SmartCraft Engine Guardian
|
|
Recommended Oil
|
Mercury or Quicksilver 25W-40
|
|
Oil Capacity
|
10 qts/9.5 L
|
|
Fuel Requirements
|
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
|
|
Dry Weight (lbs/kg)
|
695/315 L – 20″ (CL), 709/321 XL – 25″ (CXL), 717/325 XXL – 30″ (CXXL), 723/328 XXXL – 35″ (CXXXL)
|
|
Colors
|
Phantom Black, Warm Fusion White, Cold Fusion White, Pearl Fusion White
|
|
Shaft Length (in/mm)
|
20 (508), 25 (635), 30 (762), 35 (889)
|
|
Battery Net Charging
|
50+ Amps @700 RPM 90+ Amps @Above 4000 RPM
|
|
Exhaust System
|
Through Prop w/ Advanced Sound Control
|
|
Cooling System
|
Water-cooled with Thermostat Control | Below Surface Water Outlet
|
|
Lubrication System
|
Integrated Wet sump
|
|
Trim/Tilt System
|
Power Trim and Tilt
|
|
Maximum Tilt Range
|
73° (-6° to 67°)
|
|
Maximum Trim Range
|
20° (-6 to 14°)
|
|
Troll Control RPM Limit
|
550-1000
|
|
Gear Lube Capacity
|
Standard: 1.58L, Counter: 1.38L
|
|
HP/kW @ Prop
|
425/317
|
|
Max RPM (WOT)
|
6000-6600
|
|
Cylinders / Configuration
|
V10 [64 degree] with 40-valve Dual Overhead Cam [DOHC]
|
|
Displacement (CID/Liters)
|
349 / 5.7L
|
|
Bore x Stroke (mm/in)
|
92 x 86 / 3.6 x 3.4
|
|
Induction System
|
Naturally aspirated, performance-tuned intake manifold
|
|
Ignition
|
SmartCraft PCM 112 Digital Inductive
|
|
Fuel System
|
Electronic Fuel Injection [EFI] Computer Controlled with Advanced Range Optimization
|
|
Alternator Amp/Watt
|
150 amp/1890 watt belt-driven + [Idle Charge]
|
|
Midsection Design
|
Advanced MidSection (AMS)
|
|
Starting
|
Electric Start with SmartStart Protection
|
|
Gearcase / Ratio
|
6.4″ 2.08:1 [RH/LH]
|
|
Gear Shift
|
F-N-R Electronically-Actuated Shifting
|
|
Controls
|
Digital Throttle and Shift (DTS)
|
|
Steering
|
Electro-Hydraulic Power Steering or Electric Steering
|
|
Mounting Centers
|
Minimum 26-inch (660 mm) Centers
|
|
Engine Protection System
|
SmartCraft Engine Guardian
|
|
Recommended Oil
|
Mercury or Quicksilver 25W-40
|
|
Oil Capacity
|
10 qts/9.5 L
|
|
Fuel Requirements
|
Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
|
|
Dry Weight (lbs/kg)
|
695/315 L – 20″ (CL), 709/321 XL – 25″ (CXL), 717/325 XXL – 30″ (CXXL), 723/328 XXXL – 35″ (CXXXL)
|
|
Colors
|
Phantom Black, Warm Fusion White, Cold Fusion White, Pearl Fusion White
|
|
Shaft Length (in/mm)
|
20 (508), 25 (635), 30 (762), 35 (889)
|
|
Battery Net Charging
|
50+ Amps @700 RPM 90+ Amps @Above 4000 RPM
|
|
Exhaust System
|
Through Prop w/ Advanced Sound Control
|
|
Cooling System
|
Water-cooled with Thermostat Control | Below Surface Water Outlet
|
|
Lubrication System
|
Integrated Wet sump
|
|
Trim/Tilt System
|
Power Trim and Tilt
|
|
Maximum Tilt Range
|
73° (-6° to 67°)
|
|
Maximum Trim Range
|
20° (-6 to 14°)
|
|
Troll Control RPM Limit
|
550-1000
|
|
Gear Lube Capacity
|
Standard: 1.58L, Counter: 1.38L
|
